Hochfrequenz-Leiterplatten (High Frequency PCBs)
The high-frequency printed circuit board (PCB) is a specialized PCB solution for high-frequency and fast signal transmission. It is manufactured using high-quality materials such as PTFE or special high-frequency laminates and offers minimal signal loss as well as excellent electrical performance.
Original price was: ¥49.50.¥39.50Current price is: ¥39.50.
Langbeschreibung
overview
The high-frequency printed circuit board (HFC) is specifically designed for applications requiring fast and stable signal transmission. It is frequently used in communication systems, RF technology, and high-speed circuits.
At PCBSky, we produce high-quality high-frequency PCBs with precise material selection and modern manufacturing technology to ensure maximum signal stability and low losses.
Key features:
- Very low signal loss
- High signal speed and stability
- Use of PTFE / high-frequency materials
- Excellent electrical properties
- Suitable for complex RF designs
- High reliability at high frequencies
Manufacturing at PCBSky:
Our high-frequency printed circuit boards are manufactured using state-of-the-art technology:
- Precise lamination processes
- High-quality PTFE / Rogers materials
- Strict impedance control
- Automated Optical Inspection (AOI)
- Electrical final test
Applications:
- 5G communication systems
- RF modules and antenna systems
- Satellite communication
- Radar and microwave technology
- High-speed data transmission
- Aerospace Electronics
Why PCBSky High Frequency PCB:
- Premium high-frequency materials
- Precise signal and impedance control
- Stability at extremely high frequencies
- Tailor-made PCB solutions
- Suitable for prototype and series production
Verwandte Produkte

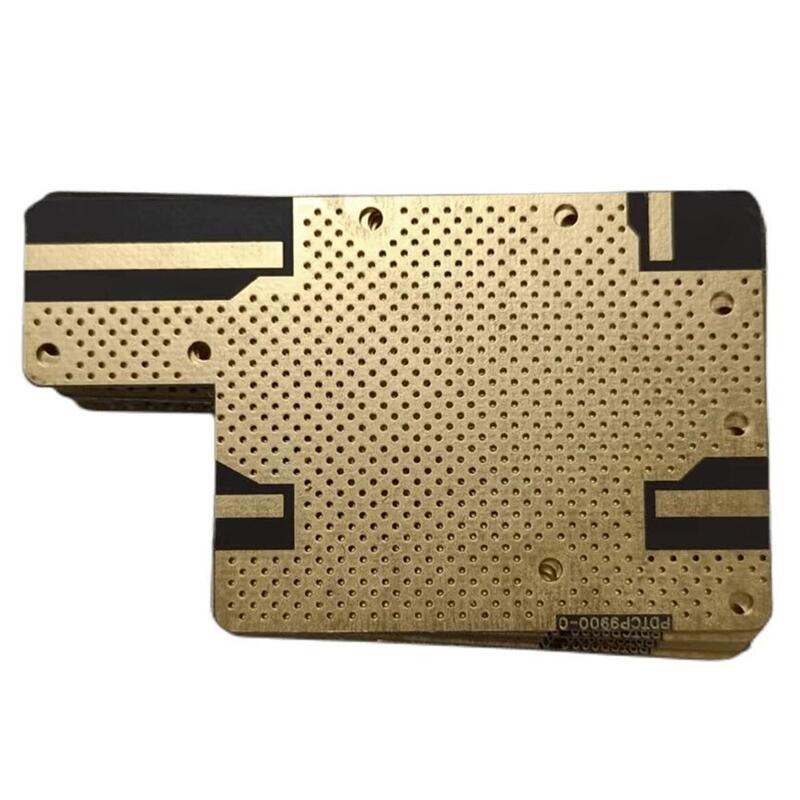

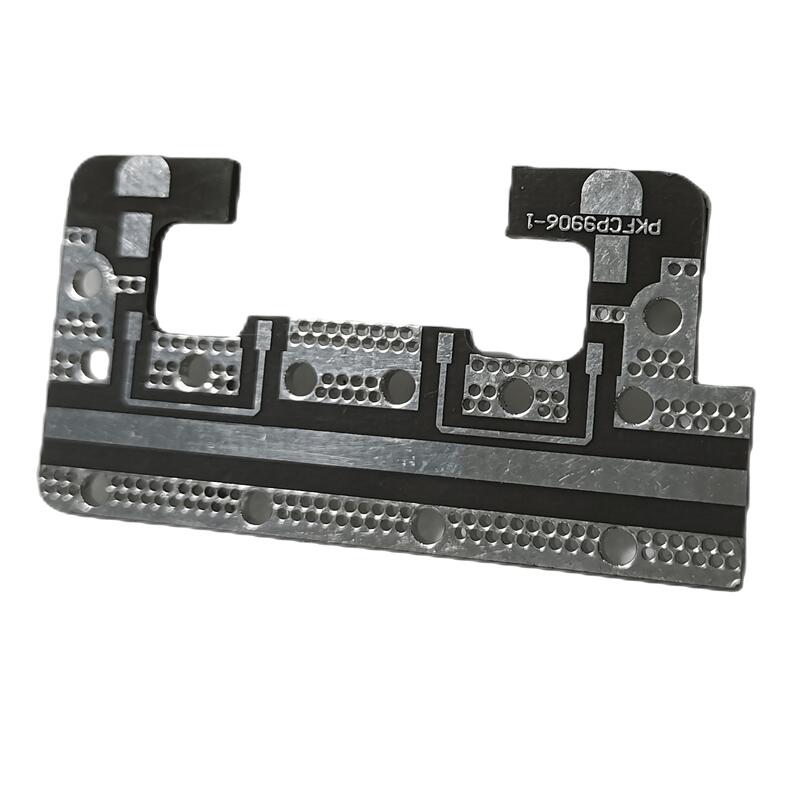

Die PTFE-Leiterplatte ist eine Hochfrequenz-Printed Circuit Board Lösung, die aus Polytetrafluorethylen (PTFE) Material hergestellt wird. Sie bietet extrem niedrige Signalverluste, hohe thermische Stabilität und hervorragende elektrische Eigenschaften für anspruchsvolle RF- und Hochgeschwindigkeitsanwendungen.
The high-frequency printed circuit board (PCB) is a specialized PCB solution for high-frequency and fast signal transmission. It is manufactured using high-quality materials such as PTFE or special high-frequency laminates and offers minimal signal loss as well as excellent electrical performance.

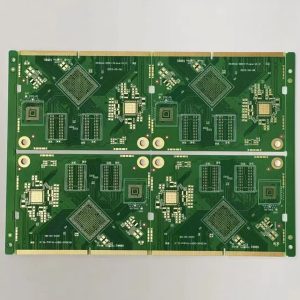

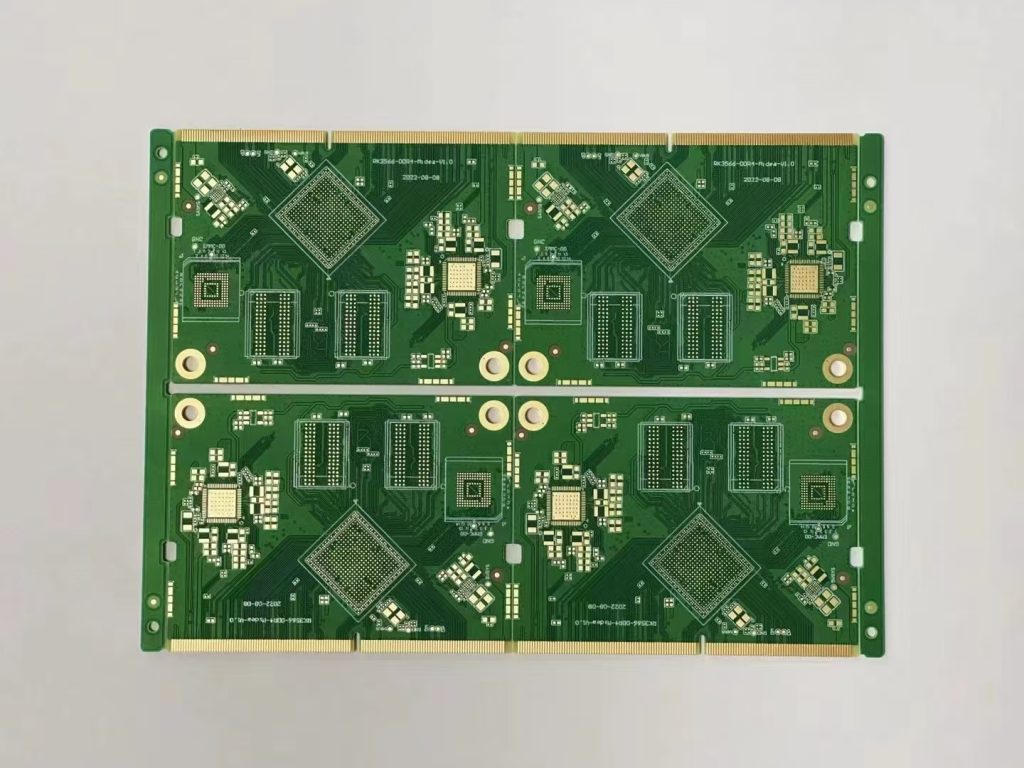

Blind and buried via printed circuit boards (BPCBs) are an advanced HDI technology that enables internal connections between different PCB layers. They are used for high-density, compact, and high-performance electronic designs.

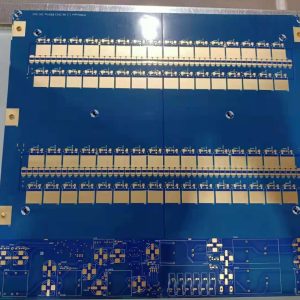

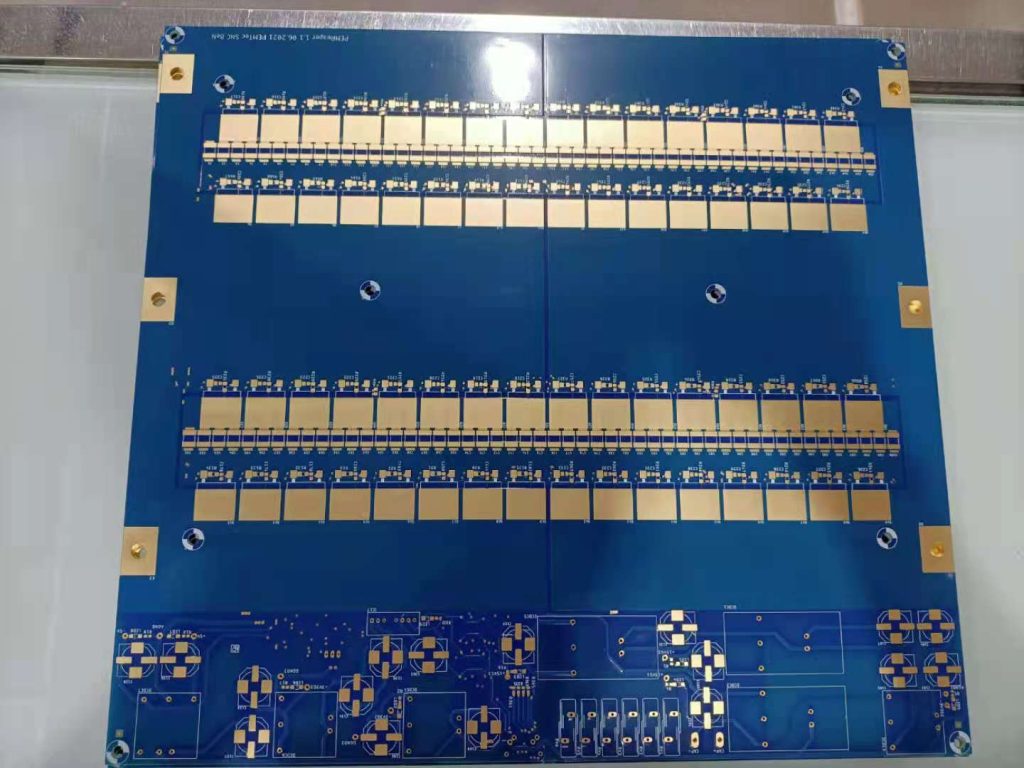

Die Dickkupfer-Leiterplatte ist eine spezielle Leiterplatte mit stark erhöhtem Kupfergewicht, die für hohe Strombelastung, Wärmeableitung und industrielle Anwendungen entwickelt wurde. Sie bietet hervorragende Zuverlässigkeit für leistungsstarke elektronische Systeme.
